Data Structures: Linked Lists and Hash Tables

Data structures

Data structures are a way of organizing collections of data in the computer's memory

Data structures

Data structures are a way of organizing collections of data in the computer's memory

Data structures

Data structures are a way of organizing collections of data in the computer's memory

Data structures

Data structures are a way of organizing collections of data in the computer's memory

Data structures

Data structures are a way of organizing collections of data in the computer's memory

Linked Lists

Linked Lists

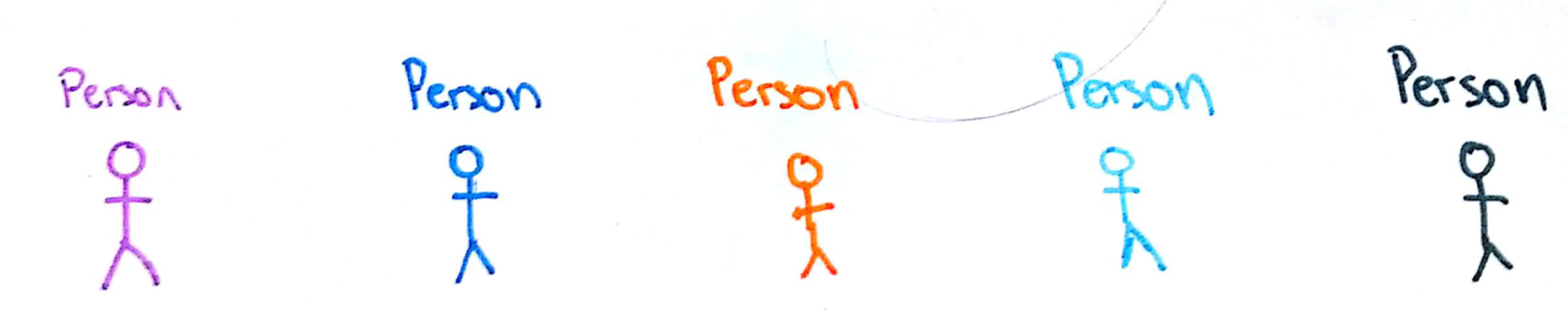

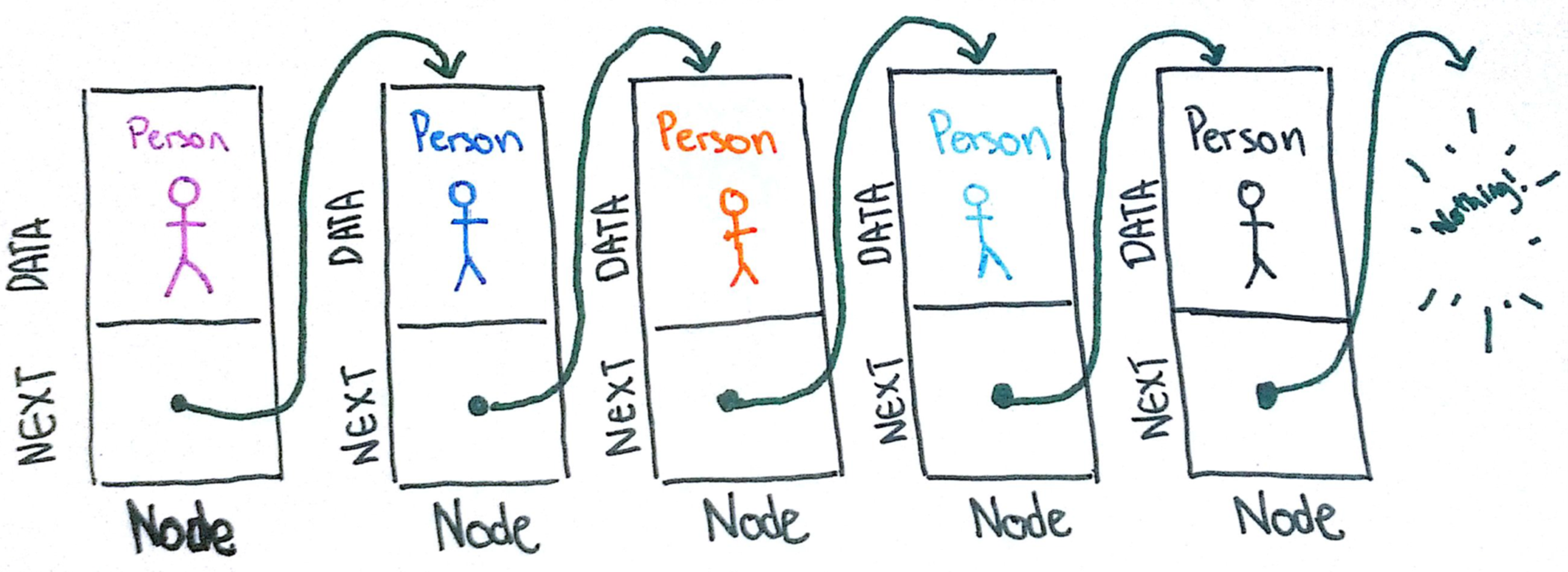

This is a visual representation of a linked list using the Person objects from the social network

Linked Lists

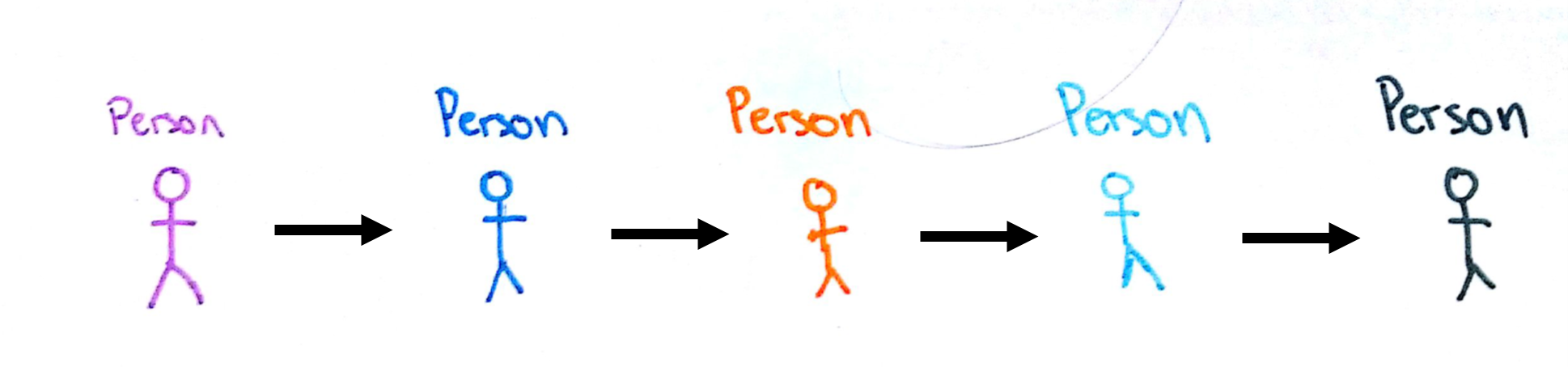

This is a visual representation of a linked list using the Person objects from the social network

Linked Lists

This is a visual representation of a linked list using the Person objects from the social network

Linked Lists

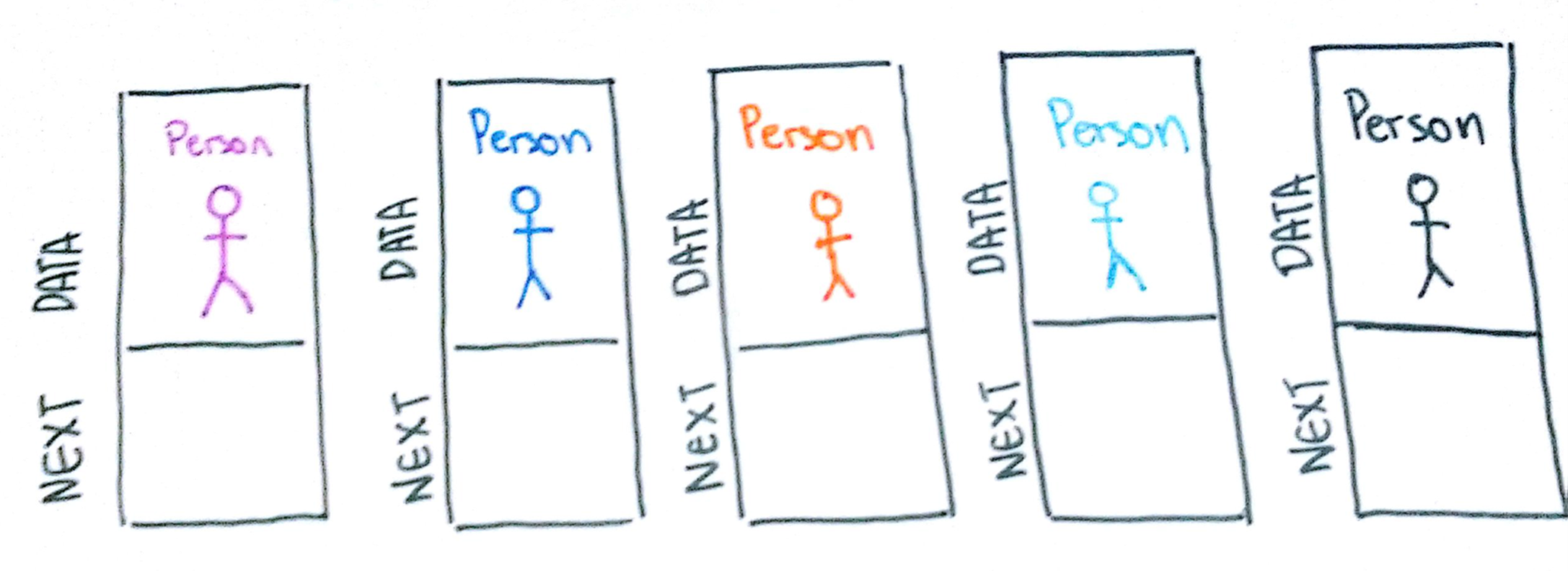

This is a visual representation of a linked list using the Person objects from the social network

Linked Lists

This is a visual representation of a linked list using the Person objects from the social network

Linked Lists

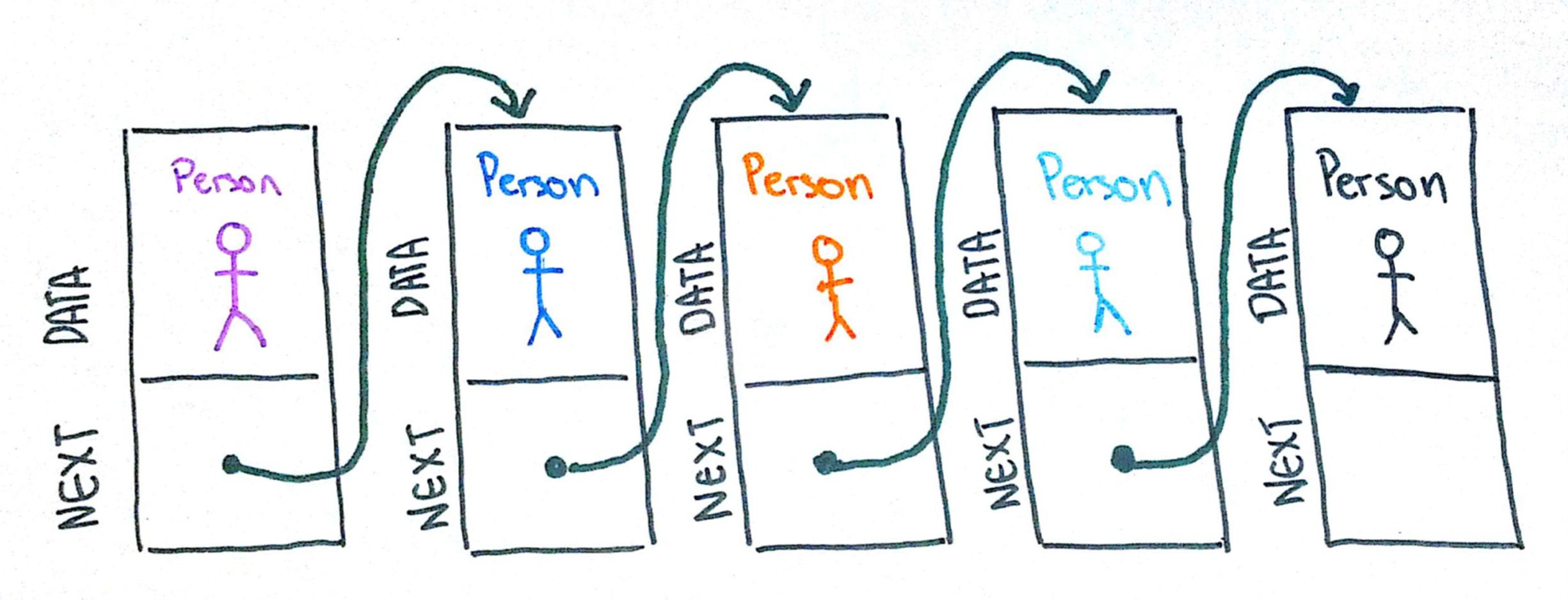

This is a visual representation of a linked list using the Person objects from the social network

Linked Lists

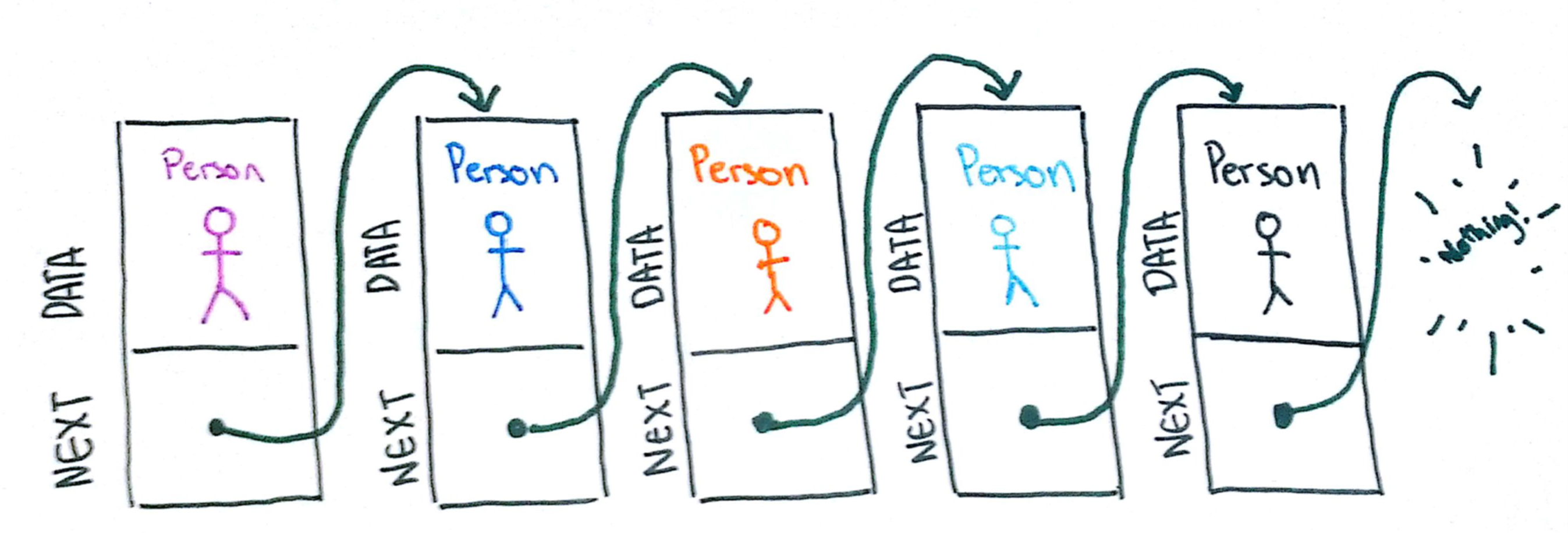

This is a visual representation of a linked list using the Person objects from the social network

Linked Lists

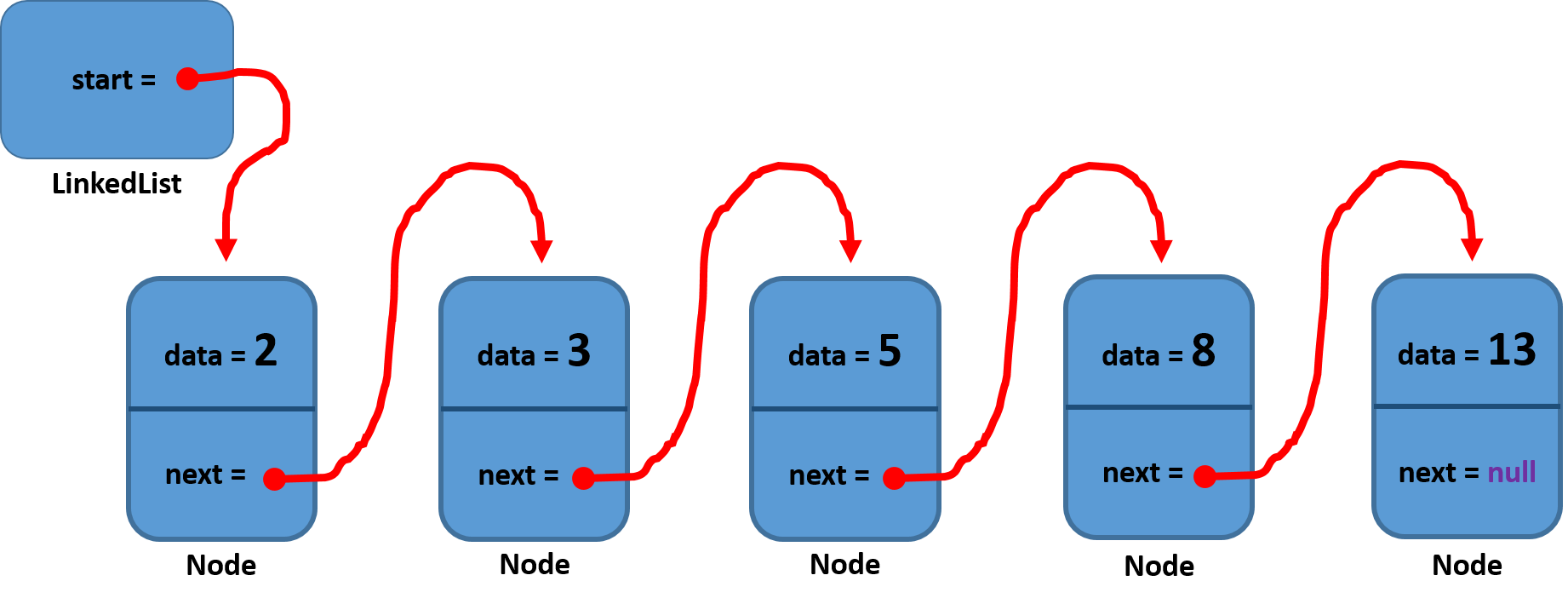

This is a visual representation of a linked list using int values

Going through the components of a LinkedList

We need to define a class for each element in the list: the Node class

The Node class should have:

• A pointer to some data. We will call it its value. For simplicity, we will hold int numbers in our LinkedList
• A pointer to the next element in the list. Unsurprisingly, we will call it next

Going through the components of a LinkedList

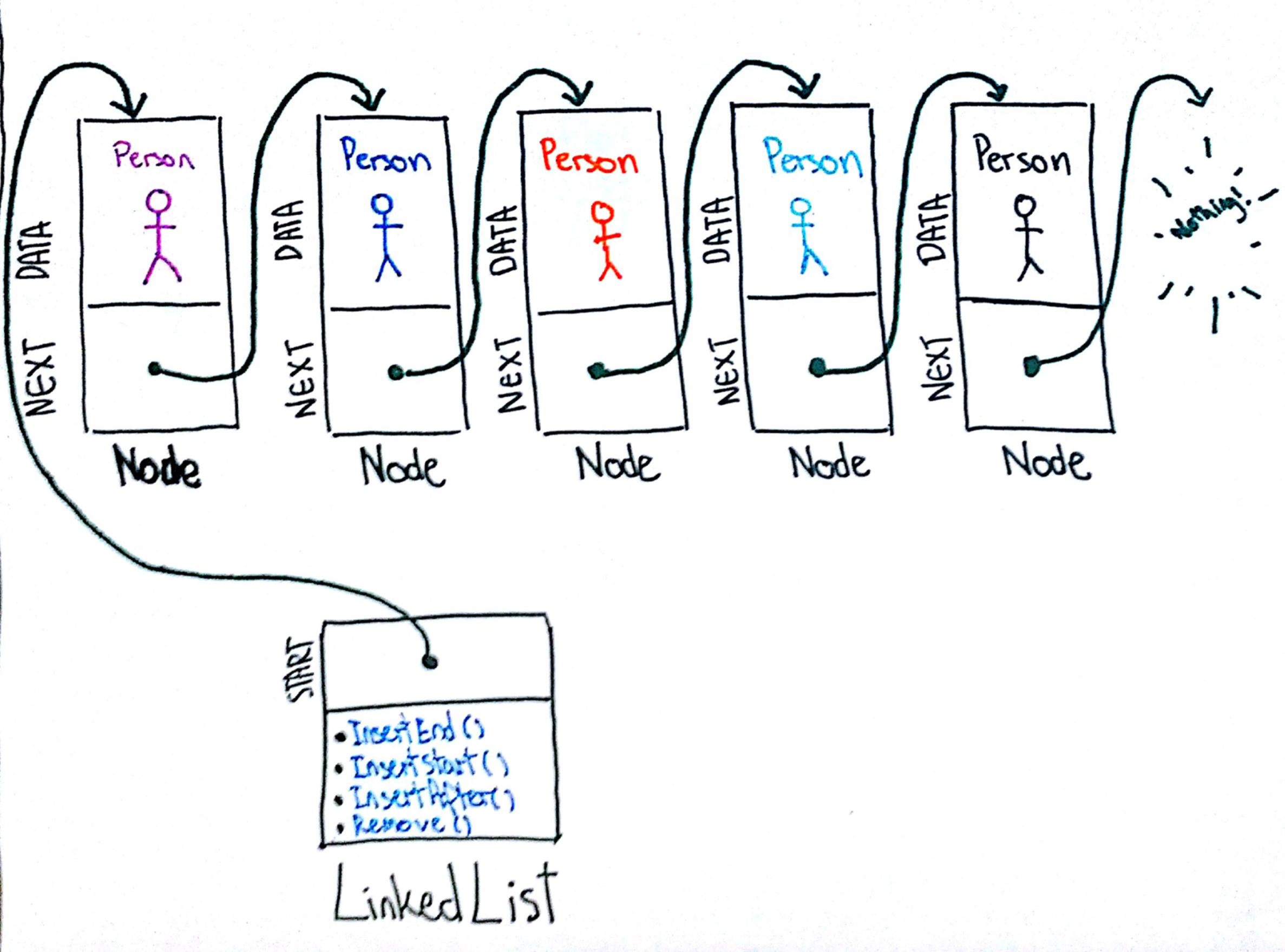

We need to define a class for doing operations on the list: the LinkedList class

The LinkedLsit class should have:

• A pointer to the first element in the list. We will call it start.
• All the methods with the operations we want to make on lists

Inserting elements in a linked list

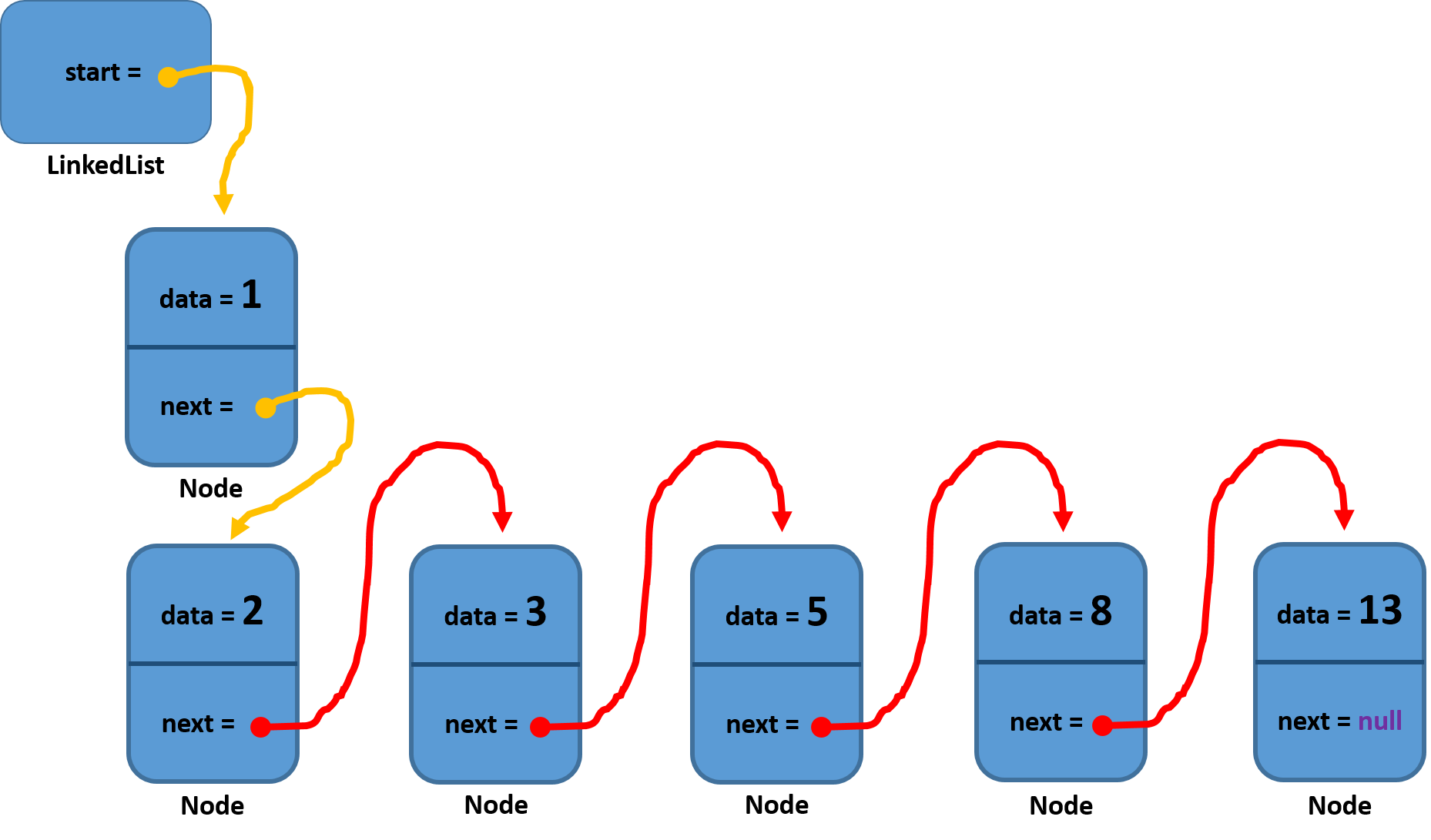

Inserting an element at the beginning

Inserting elements in a linked list

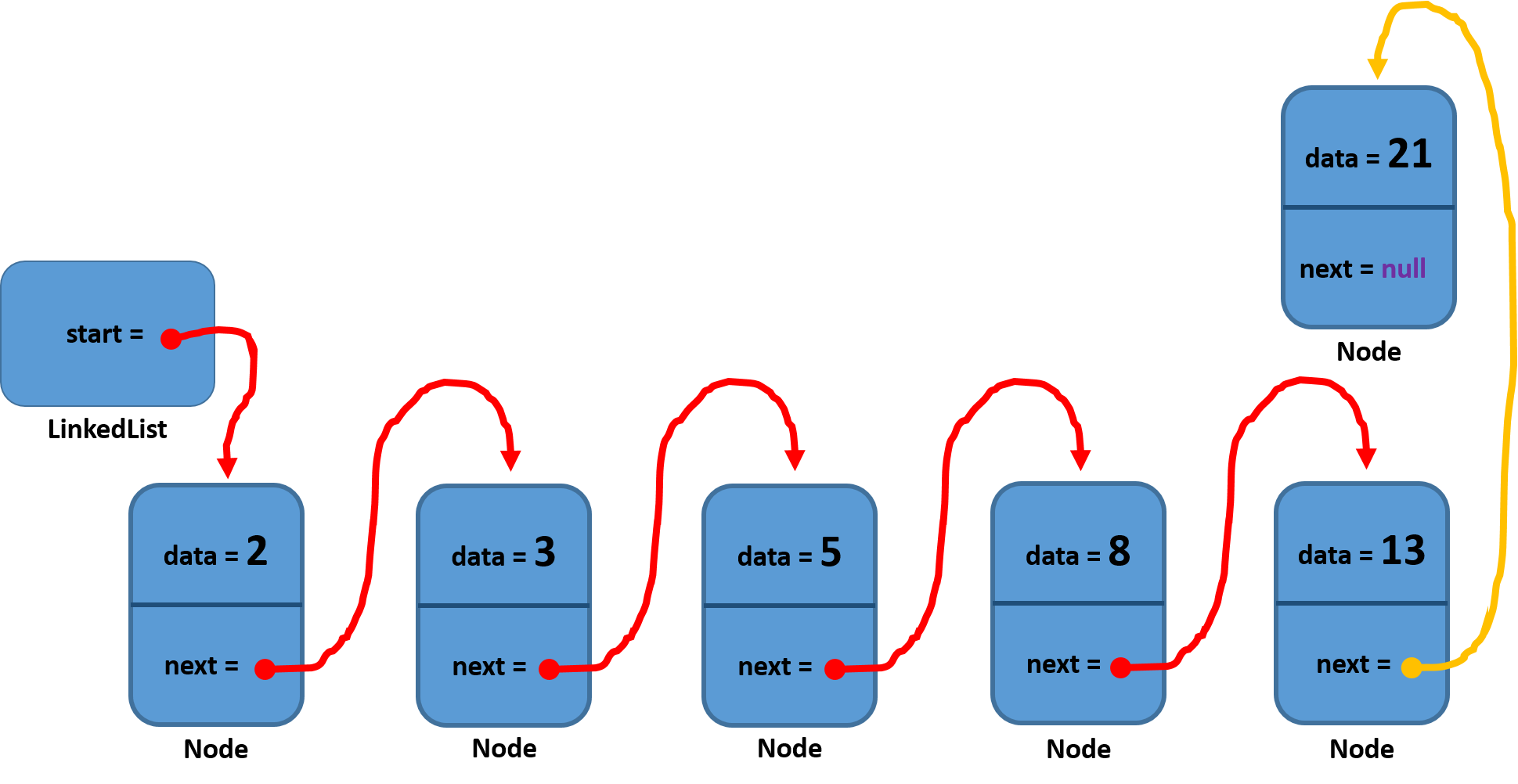

Inserting an element at the end

Inserting elements in a linked list

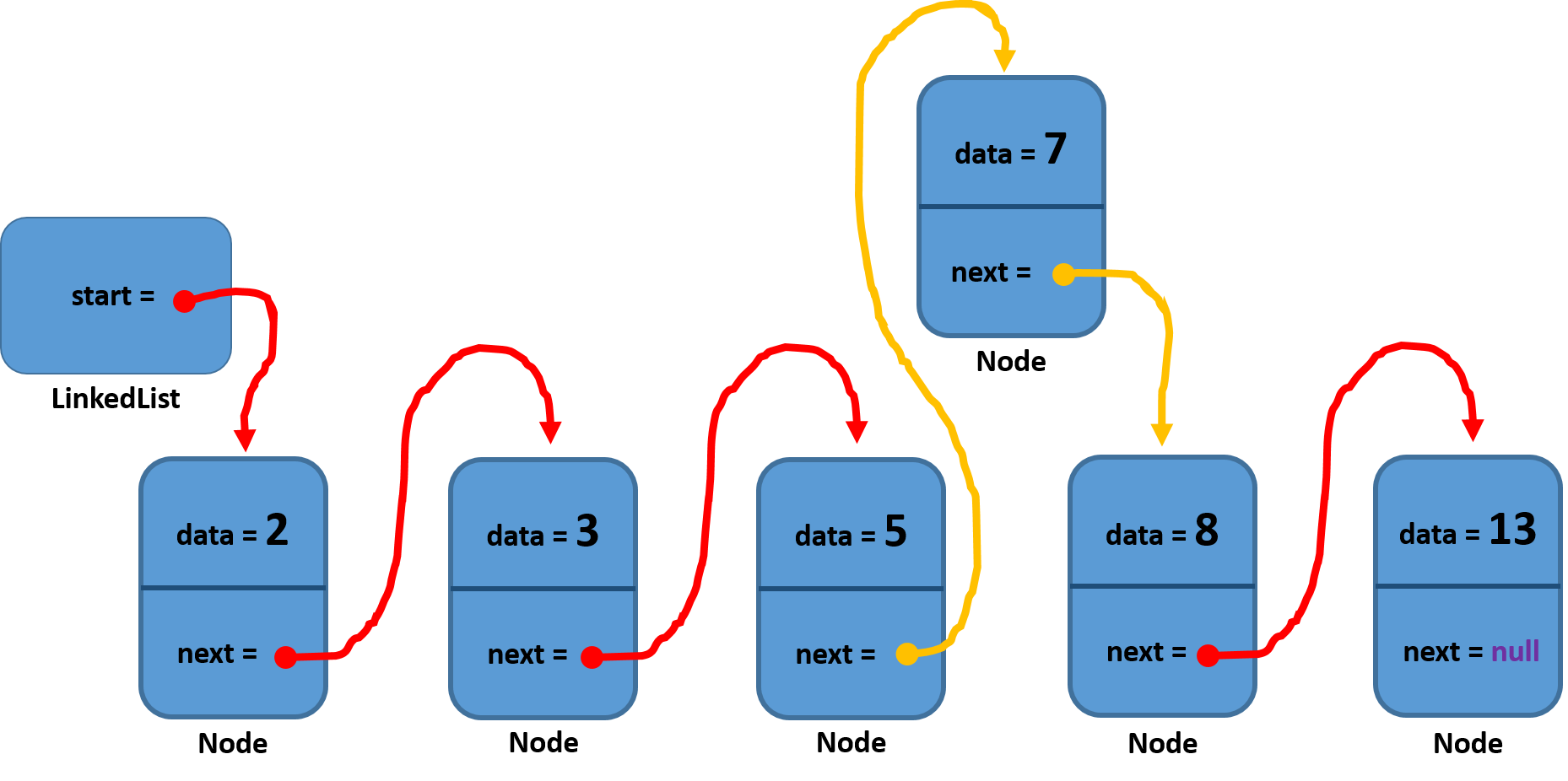

Inserting an element somewhere in the middle

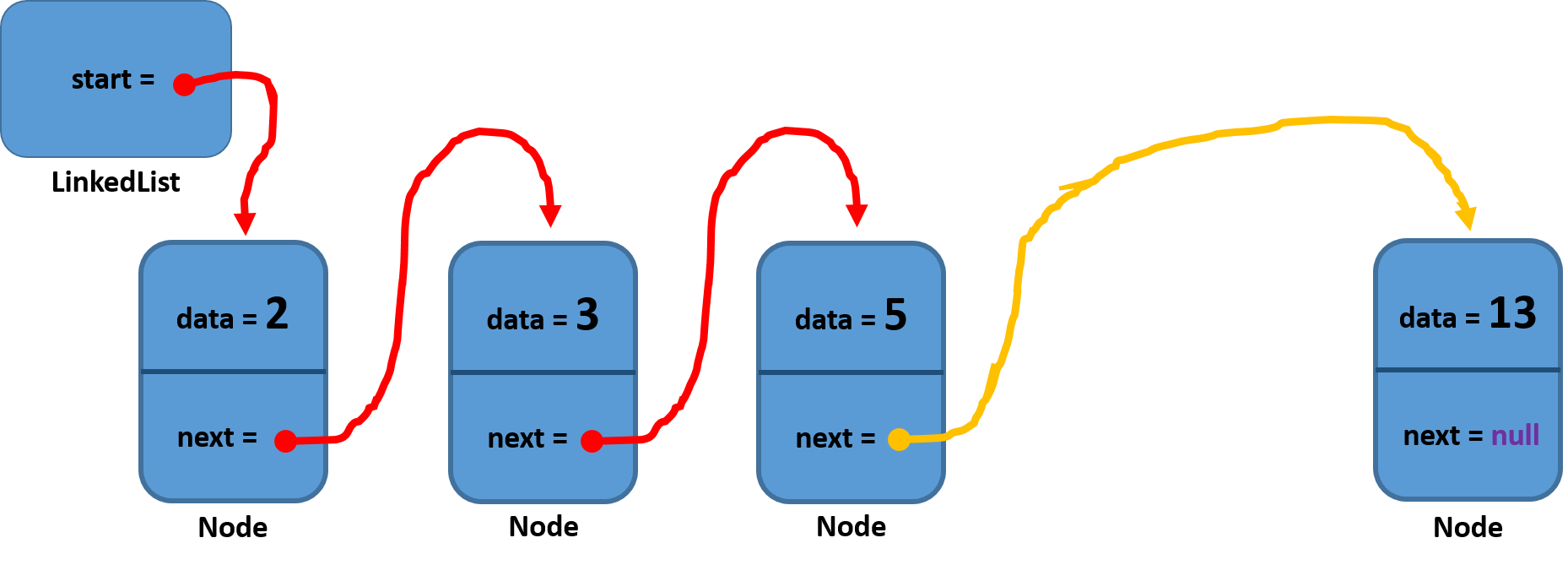

Removing elements in a linked list

Removing an element from the list

Removing elements in a linked list

Removing an element from the list

Some remarks about LinkedList

• A LinkedList allows us to add or remove elements without having to copy the whole data structure
• In a LinkedList with n elements, all operations ( search, insertion, deletion) take at most n comparisons

To try for yourself

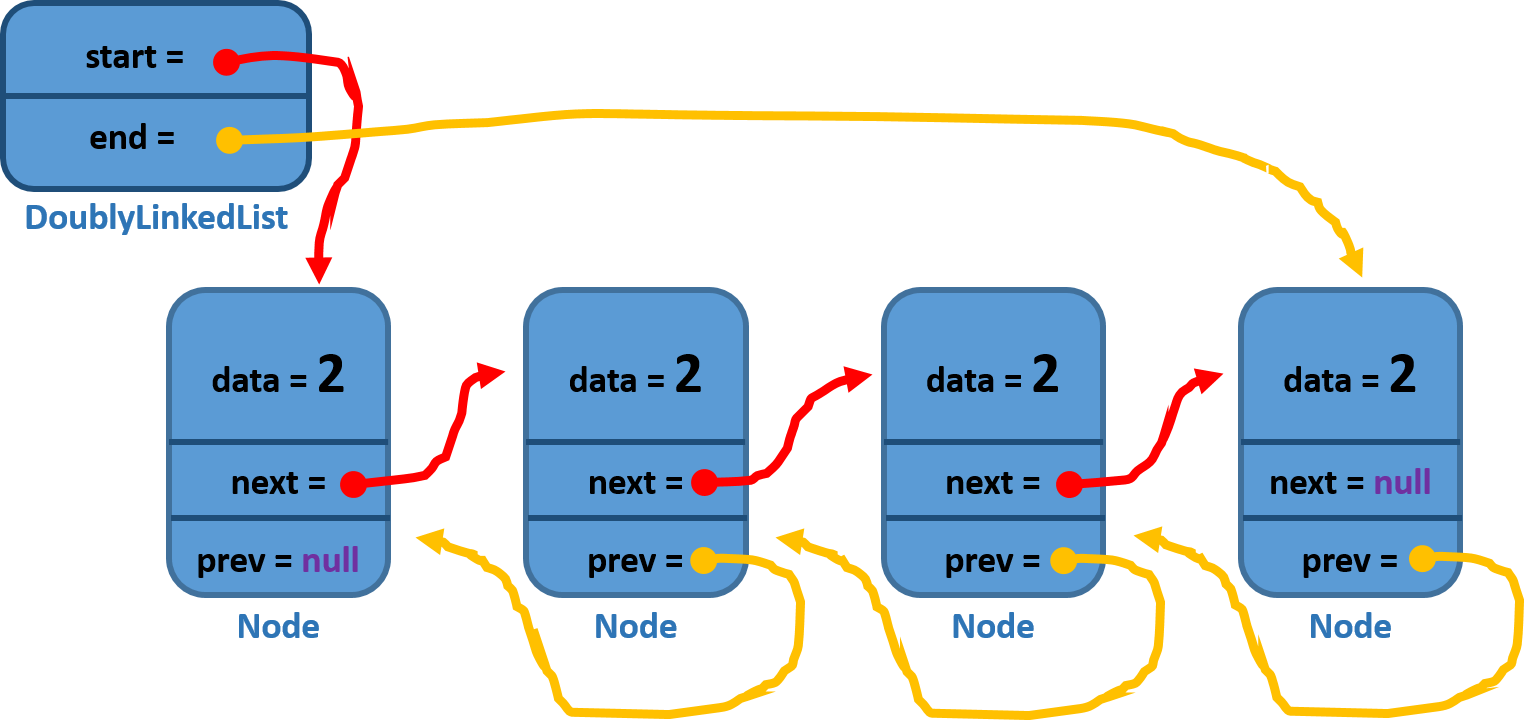

• Based on the LinkedList and Node classes, implement a DoublyLinkedList
  • In a doubly linked list, all the nodes have a reference to its predecessor : the previous element in the list.

• Implement all the insert, search and delete operations

Hash tables

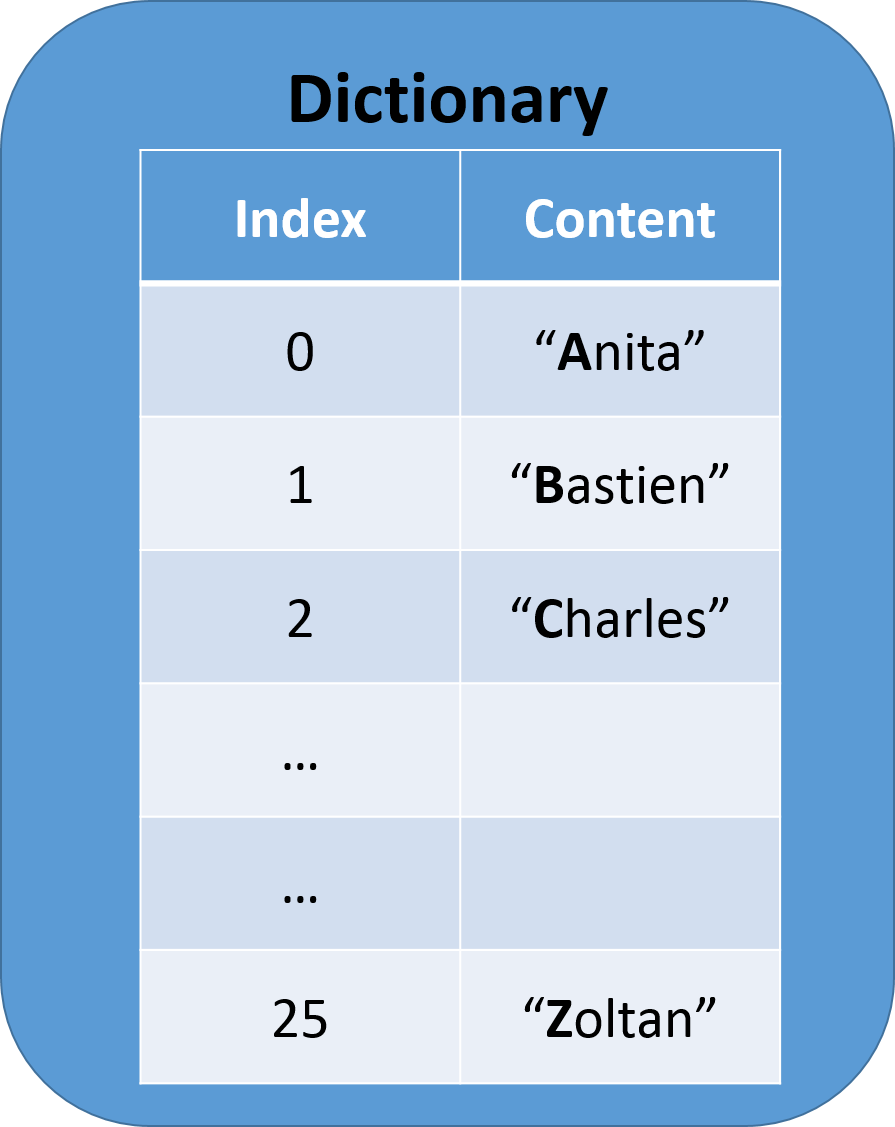

Hash tables

Hash tables can be viewed as dictionaries

We use a hashing function to determine where an element should go

Implementing a Hashtable

We use an array to store the entries in our dictionary

We need to implement the hashing function to determine where an element should go

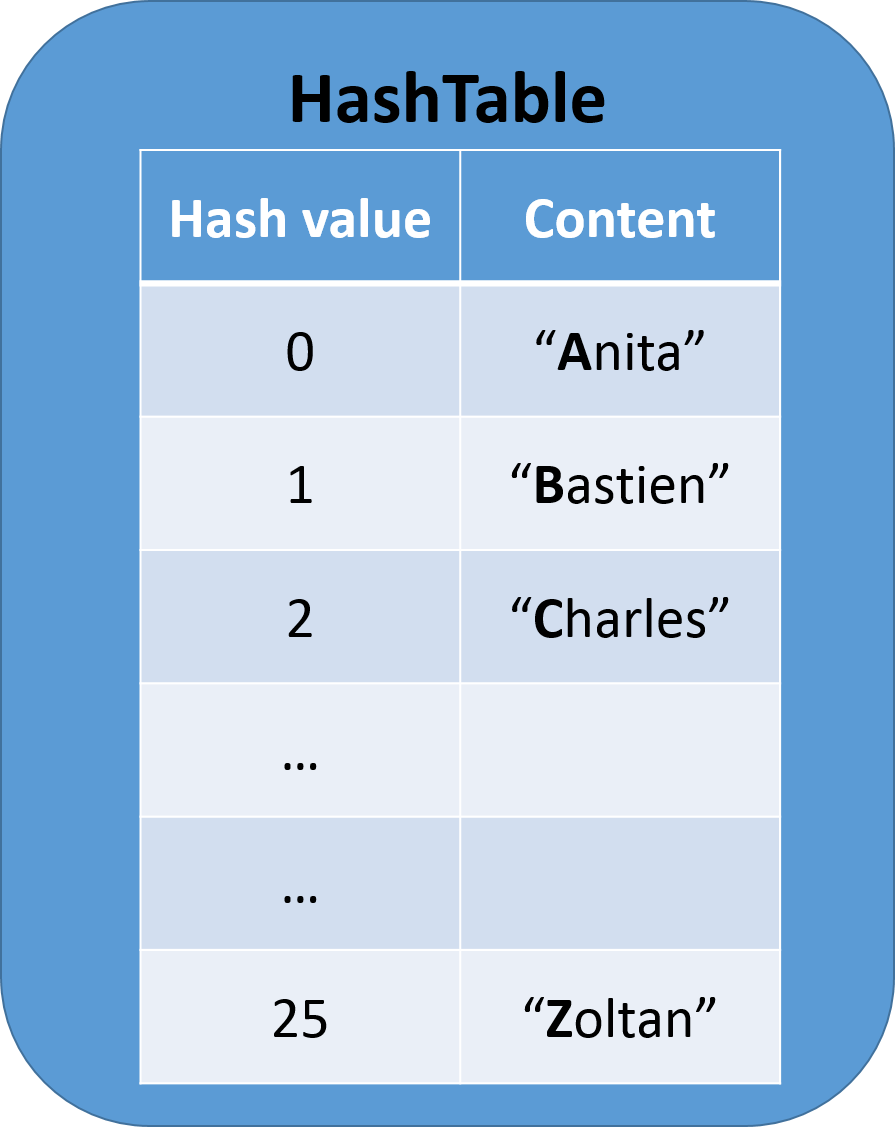

Hash tables

The hash function maps data to hash values (positions in the array)

In this case, the hashing function maps the first letter of a name to a position in the array

When two or more elements have the same hash value, a collision occurs.

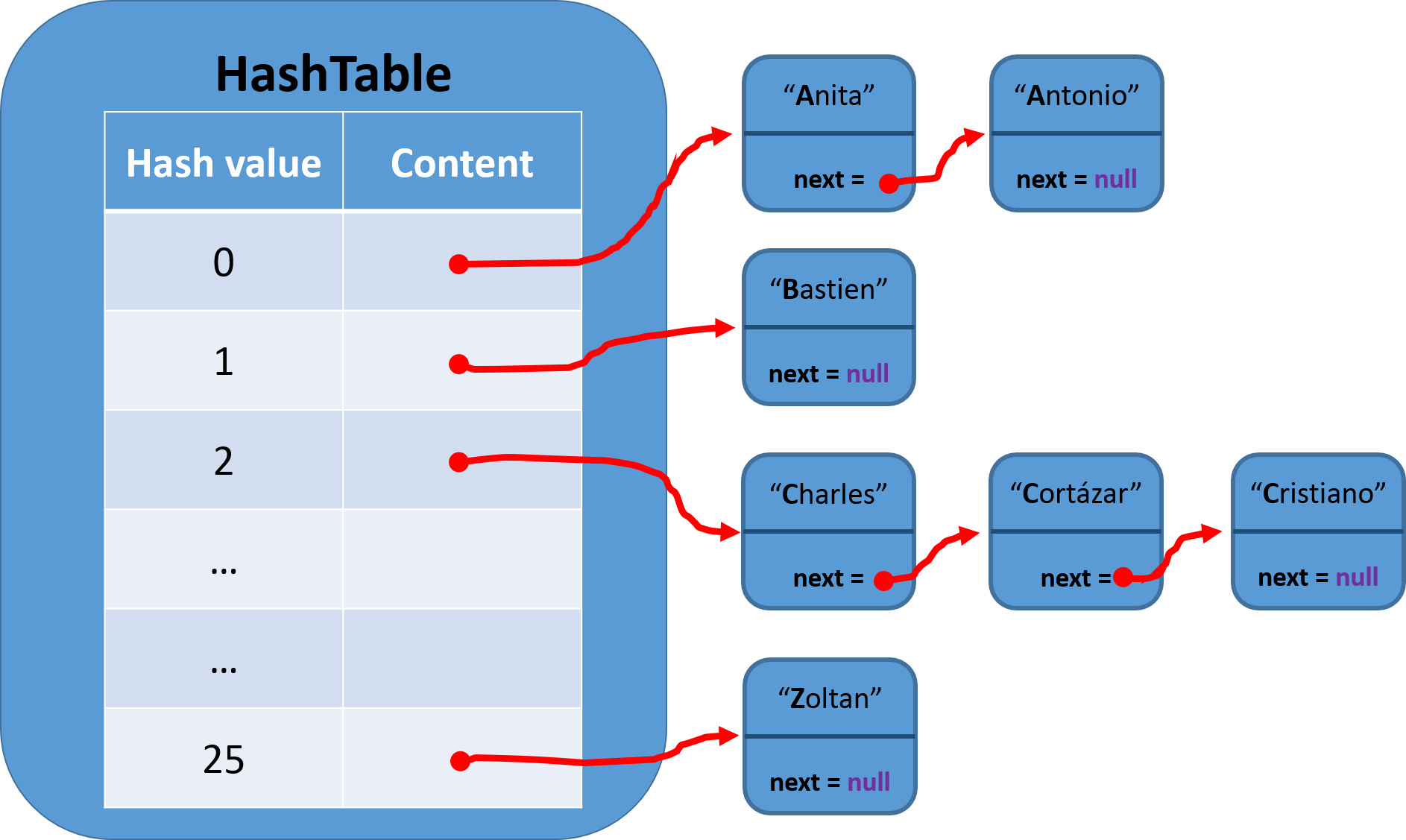

Hash tables with multiple elements per entry

A first step to deal with collisions, is to make each entry point to another data structure; e.g. a LinkedList

Implementing a Hashtable with LinkedLists for each position in the array

We use an array to store the entries in our dictionary

Hash tables with multiple elements per entry

A first step to deal with collisions, is to make each entry point to another data structure; e.g. a LinkedList

Some remarks about Hash tables

• A Hashtable allows us to add or remove elements quickly by making use of a hash function
• To deal with multiple elements in a single location in the dictionary, we combine the hashing function with a LinkedList

Resources

• Classes and Objects:
  http://docs.oracle.com/javase/tutorial/java/javaOO/
• The Shoelace Algorithm:
  http://en.wikipedia.org/wiki/Shoelace_formula
• Suggested reading:
  How to think like a Computer Scientist, Chapter 11
