Data Structures: Linked Lists
Building a social network
Suppose you're in the year 2004 and had this great idea...
- of a website where people could spend countless hours
- uploading personal information, writing messages to people that you see daily
- and you realise that you could sell this information!
You decide you want to build the basic data infrastructure of your website first

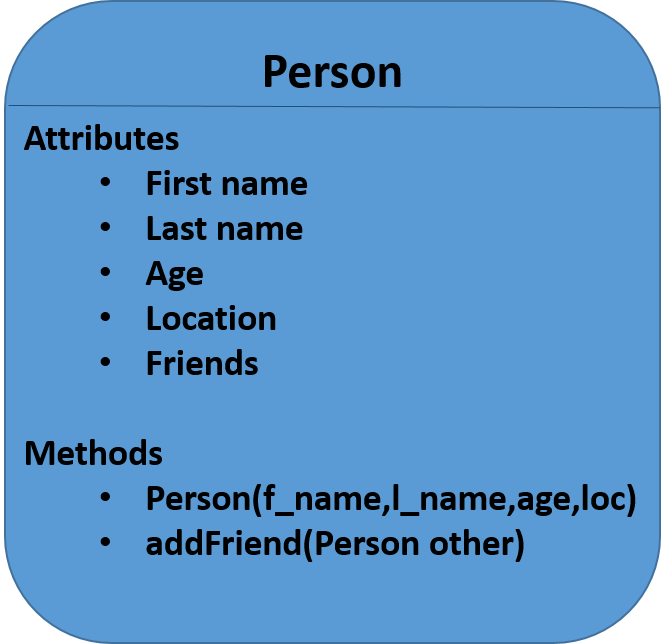

- A social network consists of people, each individual being a
Person
- Each
Person
has a name, location, age and a list of friends
The first step on your road to success, fame and $$$
You decide you want to build the basic data infrastructure of your website first
- A social network consists of people, each individual being a
Person
- Each
Person
has a name, location, age and a list of friends
Now you want to test your software with fake data
You want to test your software with randomly generated people
To do this, you would like to generate a social network with randomly generated Person
objects, each one with randomly assigned firends

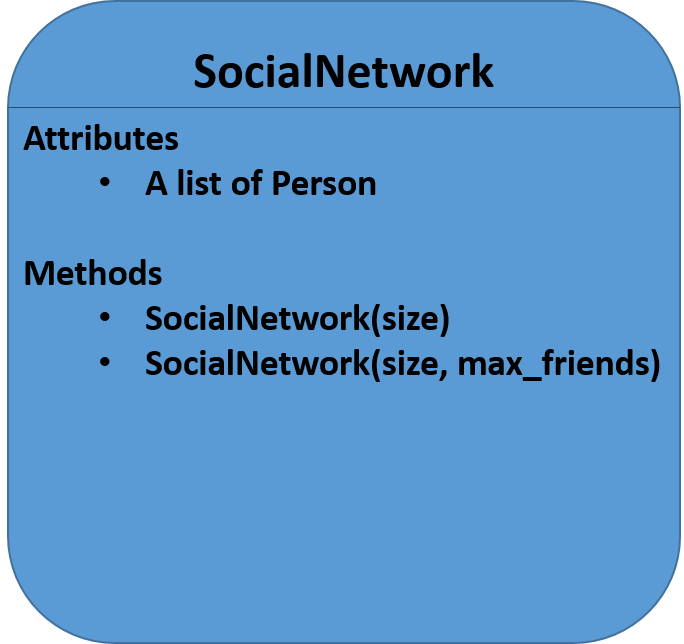

- When constructing a
SocialNetwork
you would decide on the size of the network and the maximum number of friends

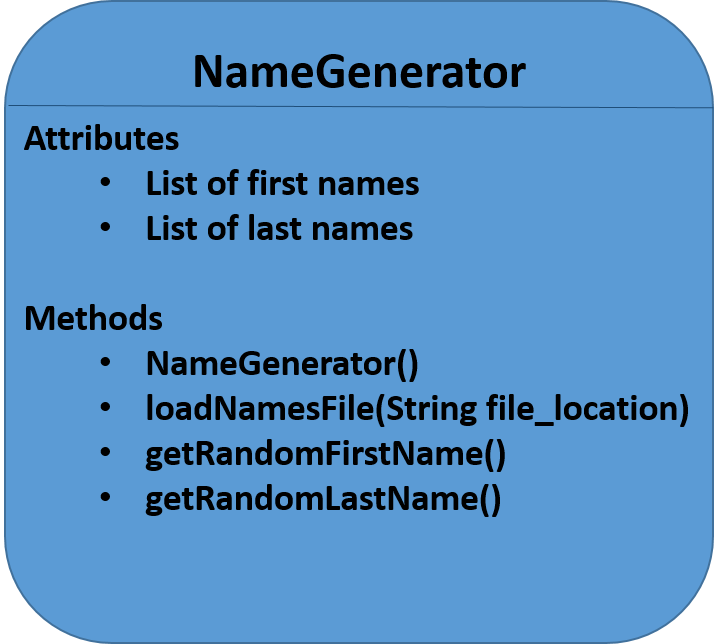

- Take a look at the NameGenerator class
- We want to add two methods: getRandomFirstName, and getRandomLastName
Now that you have a simulated social network, you are ready for pitching your idea
You want to generate silly statistics that would attract investors to your new startup
- Find the person with the largest number of friends
- Find the 2nd person with the largest number of friends
- Find the N-th person with the largest number of friends
- Find the total number of connections in your social network
- Find if you have isolated groups in your social network ( see a4 )
- Find the maximum degree of separation
Data structures
Data structures are a way of organizing collections of data in the computer's memory
Data structures
Data structures are a way of organizing collections of data in the computer's memory
Examples of data structures we have seen so far

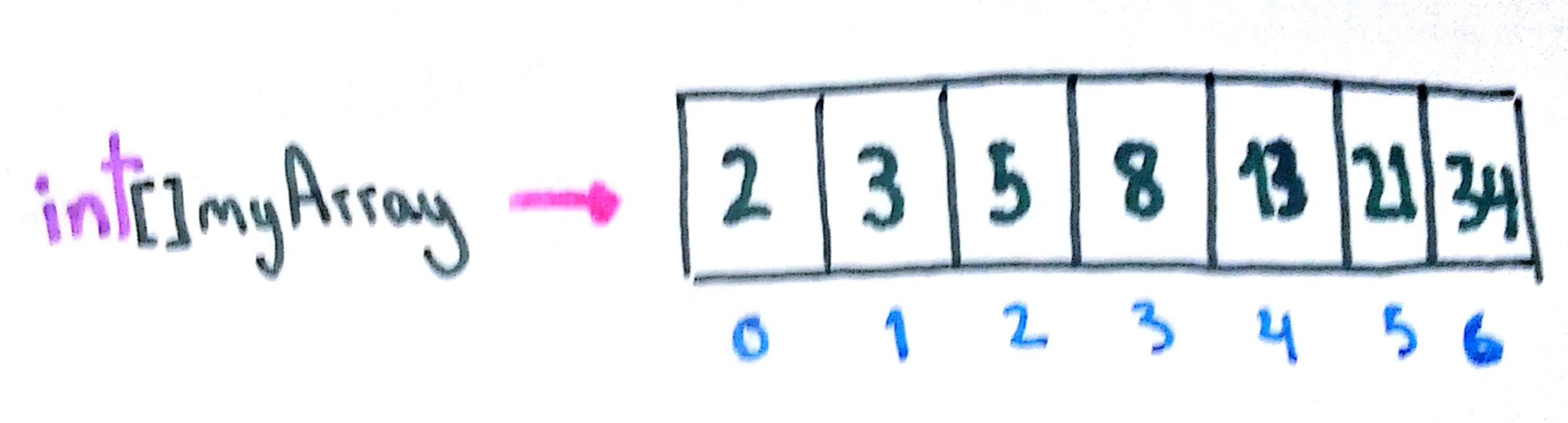

- Arrays
Data structures
Data structures are a way of organizing collections of data in the computer's memory
Examples of data structures we have seen so far
- Objects
Data structures
Data structures are a way of organizing collections of data in the computer's memory
Examples of data structures we have seen so far

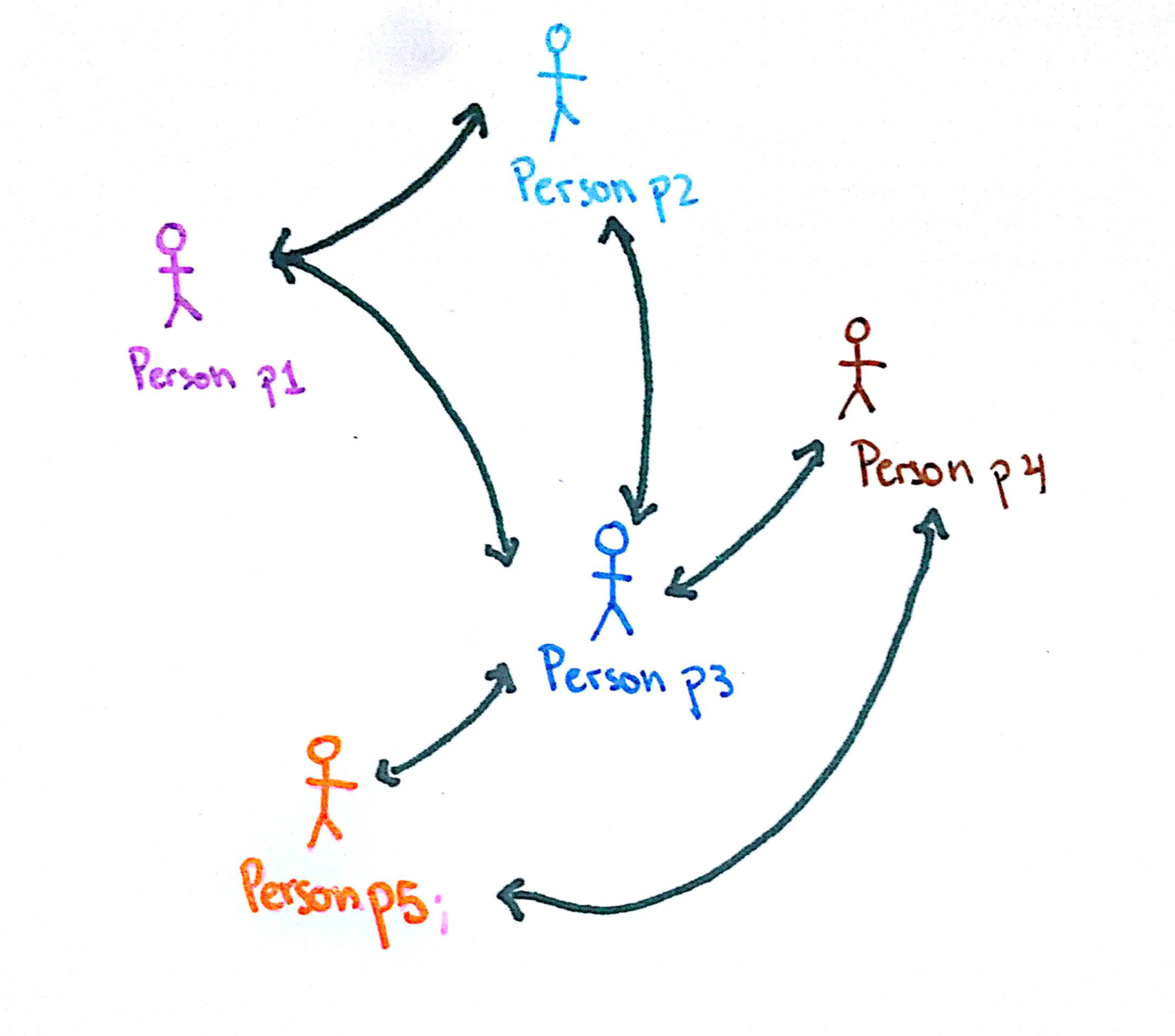

- Networks of cities (Assignment 4), a social network (last class)
Data structures
Data structures are a way of organizing collections of data in the computer's memory
Examples of data structures we have seen so far
- Arrays
- Objects
- Networks of cities (Assignment 4), a social network (last class)
- Linked Lists (today's class)
Linked Lists

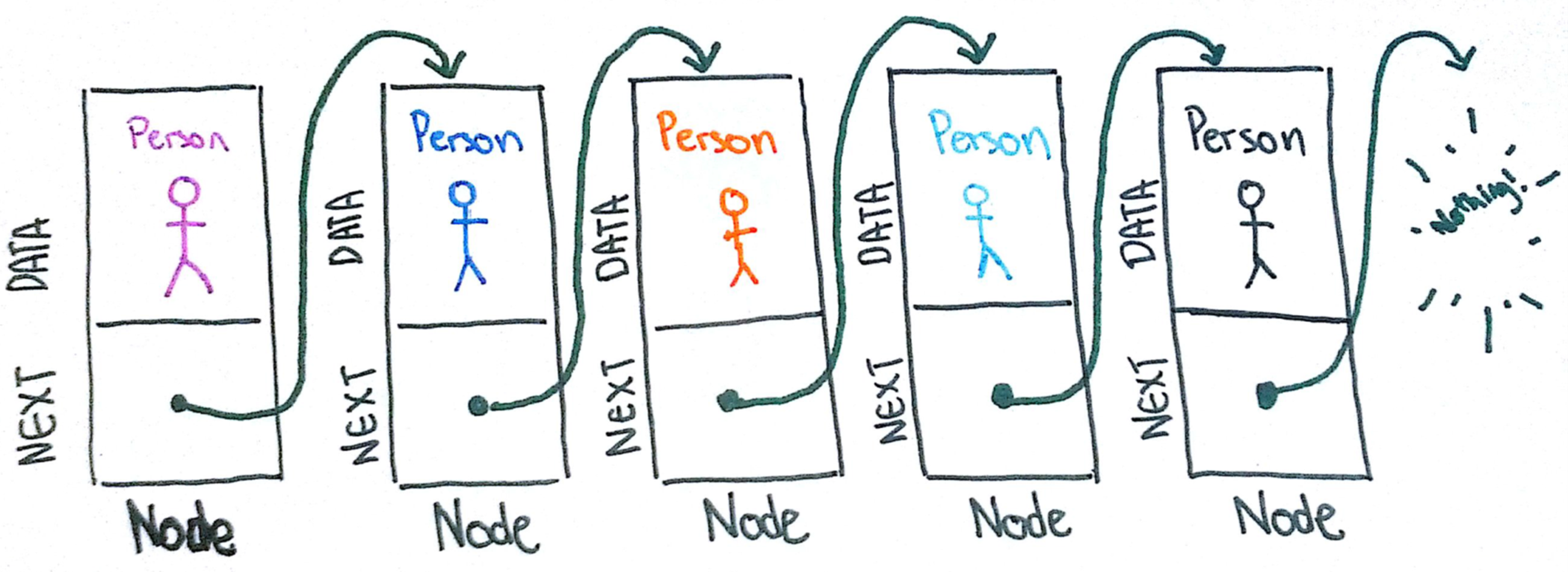

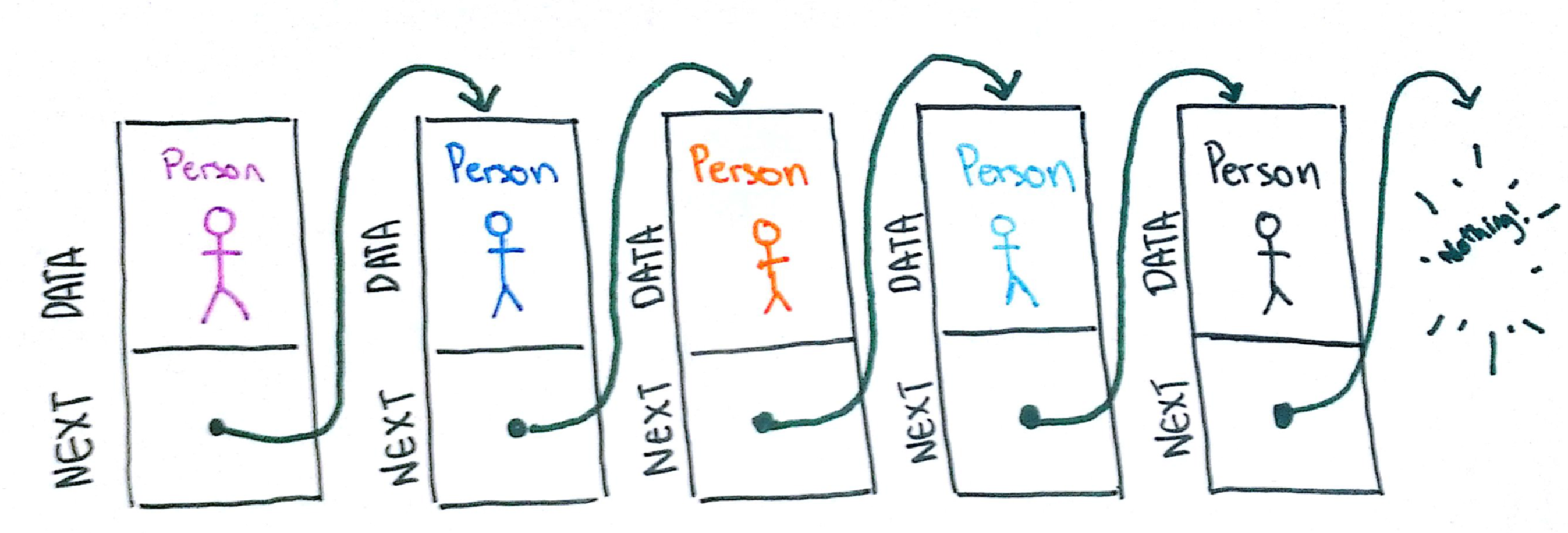

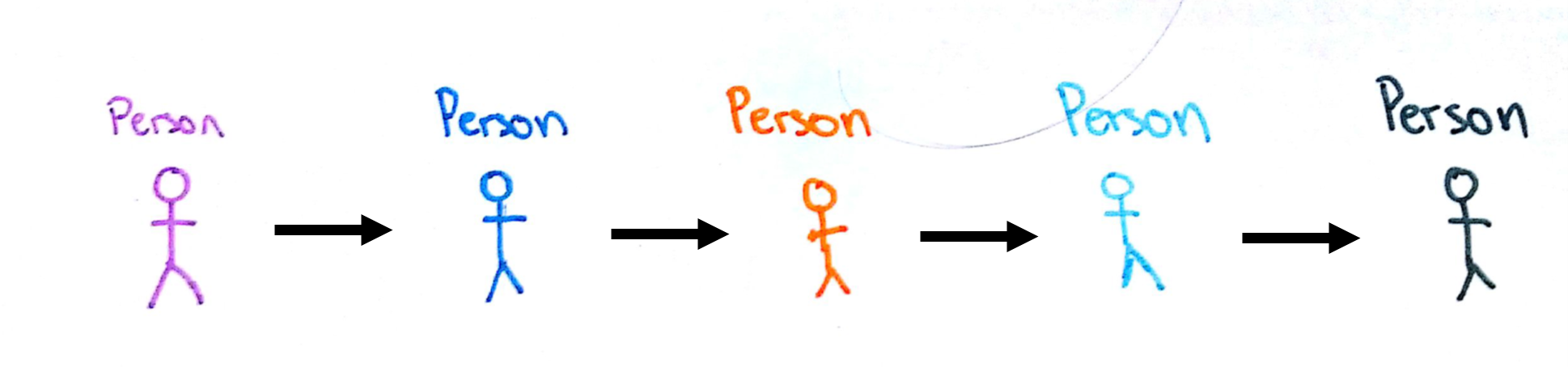

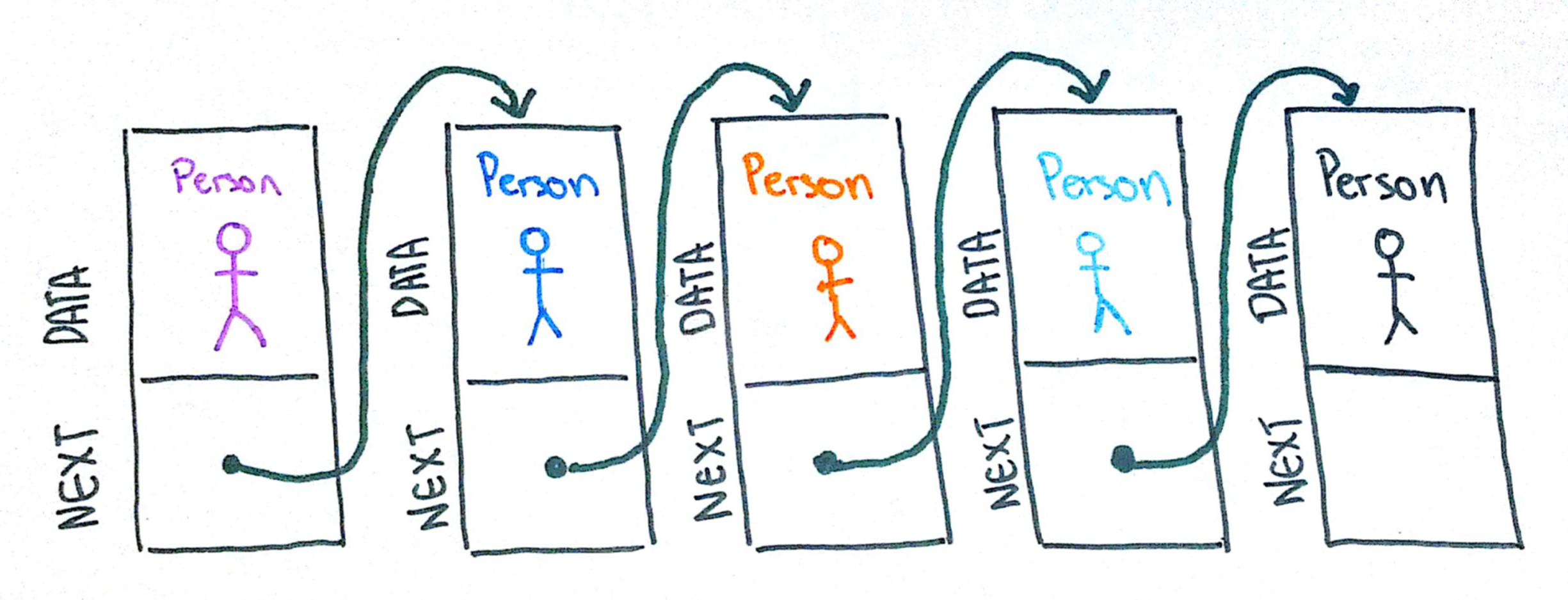

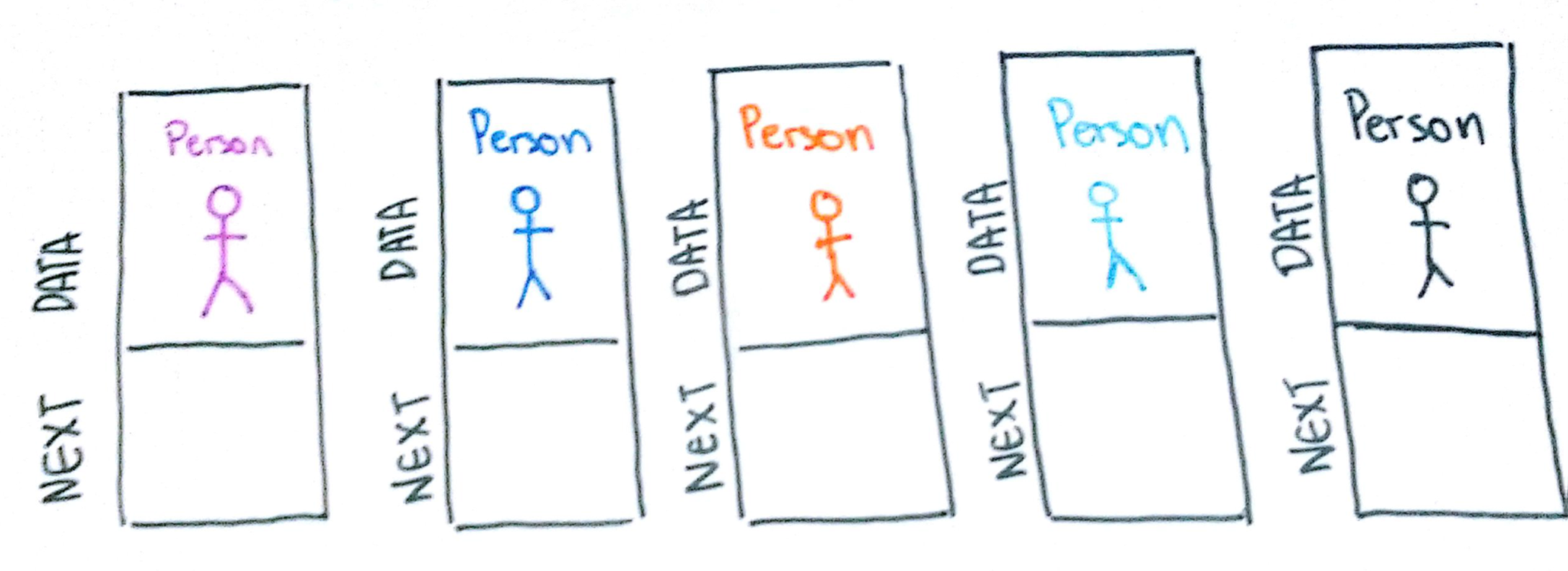

This is a visual representation of a linked list using the Person objects from the social network
Linked Lists
This is a visual representation of a linked list using the Person objects from the social network
Linked Lists
This is a visual representation of a linked list using the Person objects from the social network
Linked Lists
This is a visual representation of a linked list using the Person objects from the social network
Linked Lists
This is a visual representation of a linked list using the Person objects from the social network
Linked Lists
This is a visual representation of a linked list using the Person objects from the social network
Linked Lists
This is a visual representation of a linked list using the Person objects from the social network

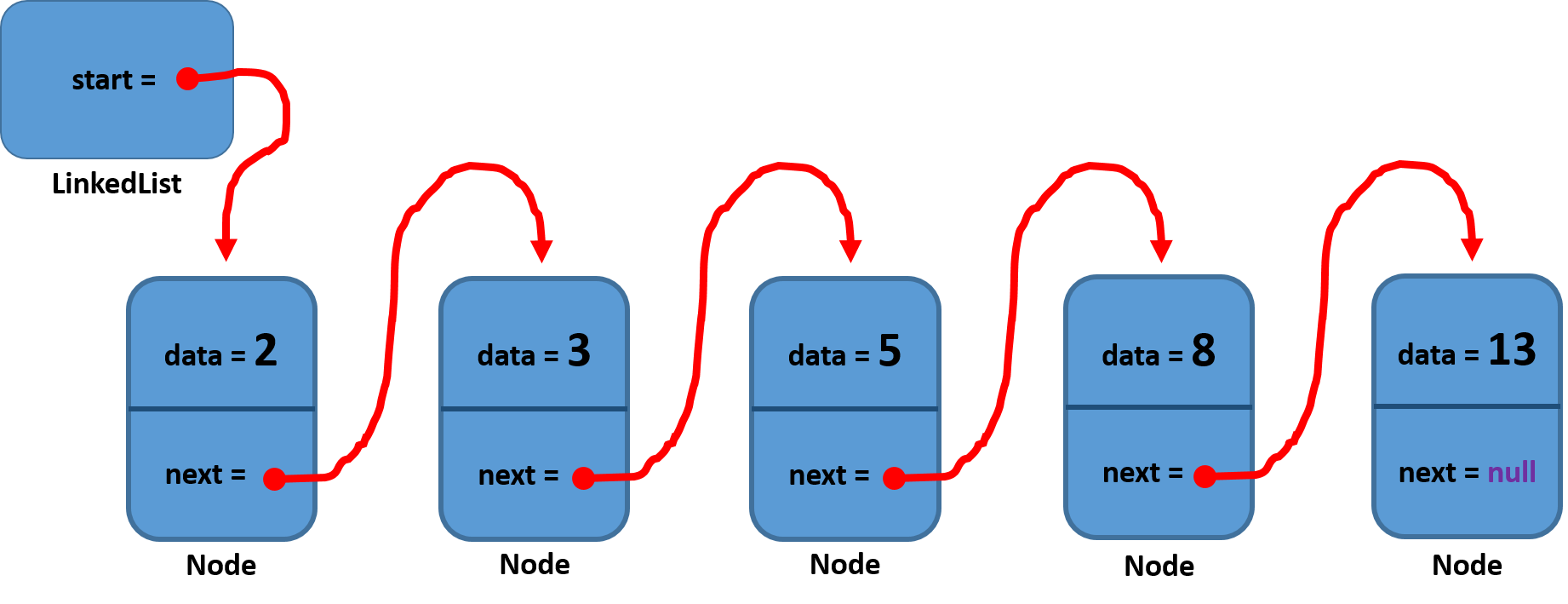

Linked Lists
This is a visual representation of a linked list using int
values
Going through the components of a LinkedList
We need to define a class for each element in the list: the Node
class
The Node
class should have:
- A pointer to some data. We will call it its
value
. For simplicity, we will hold int
numbers in our LinkedList
- A pointer to the next element in the list. Unsurprisingly, we will call it
next

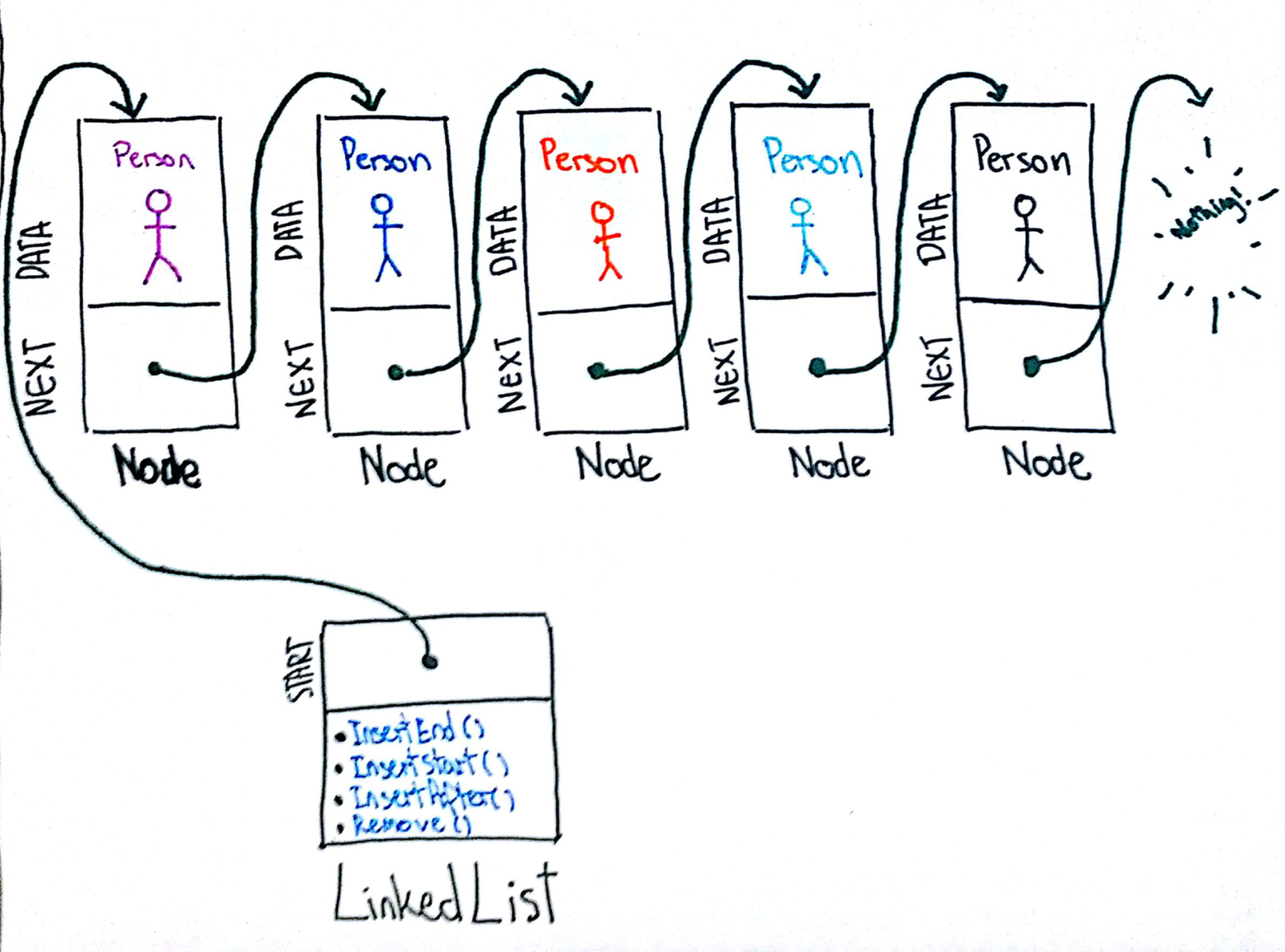

Going through the components of a LinkedList
We need to define a class for doing operations on the list: the LinkedList
class
The LinkedLsit
class should have:
- A pointer to the first element in the list. We will call it start.
- All the methods with the operations we want to make on lists
Inserting elements in a linked list
- Inserting at the beginning of the LinkedList
- Inserting at the end of the LinkedList
- Inserting somewhere in the middle of the LinkedList
- Deleting a Node from the List
/
